Great Lakes Drain System™

Install Gallery

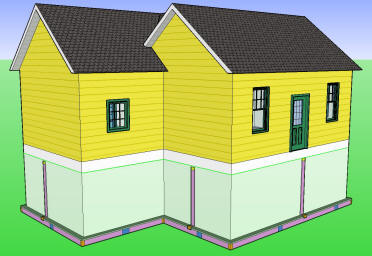

Great Lakes Drain System shown with  optional vertical drain strips
Click here to go to Over Install Page

ICF installer uses Great Lakes Drain System

Installation Gallery

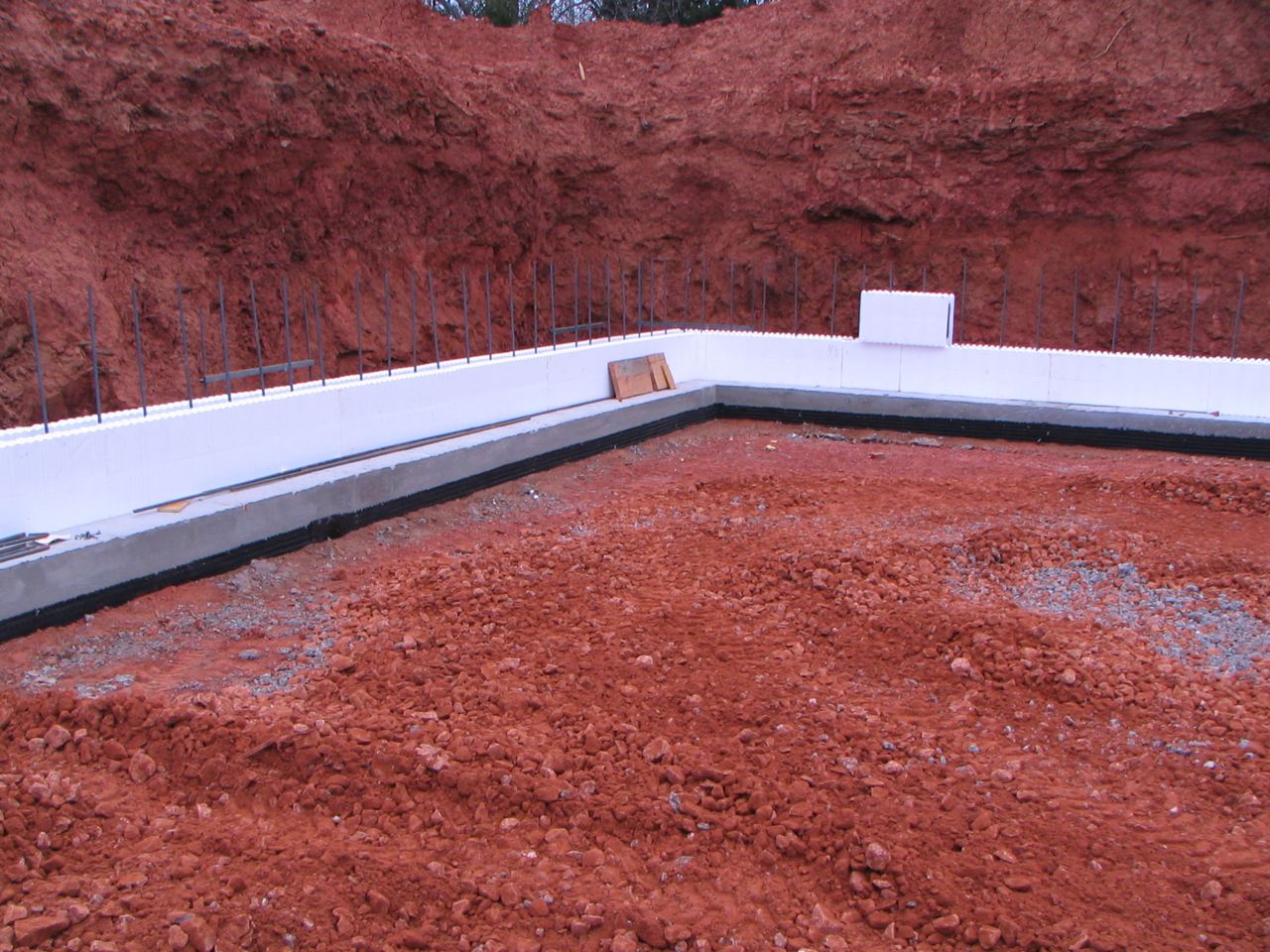

Inside & outside of footing

Red red clay soils of the southwest USA.

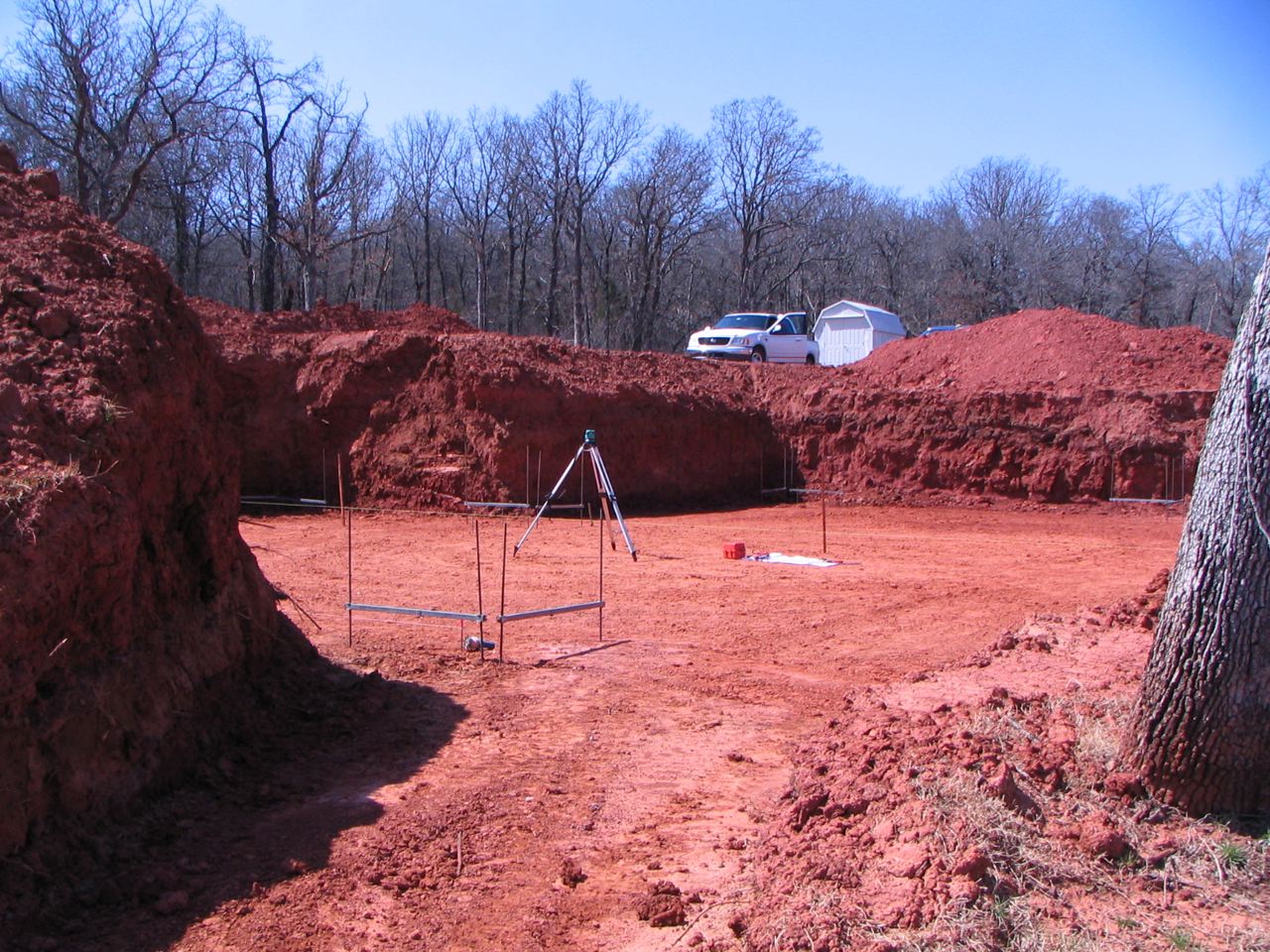

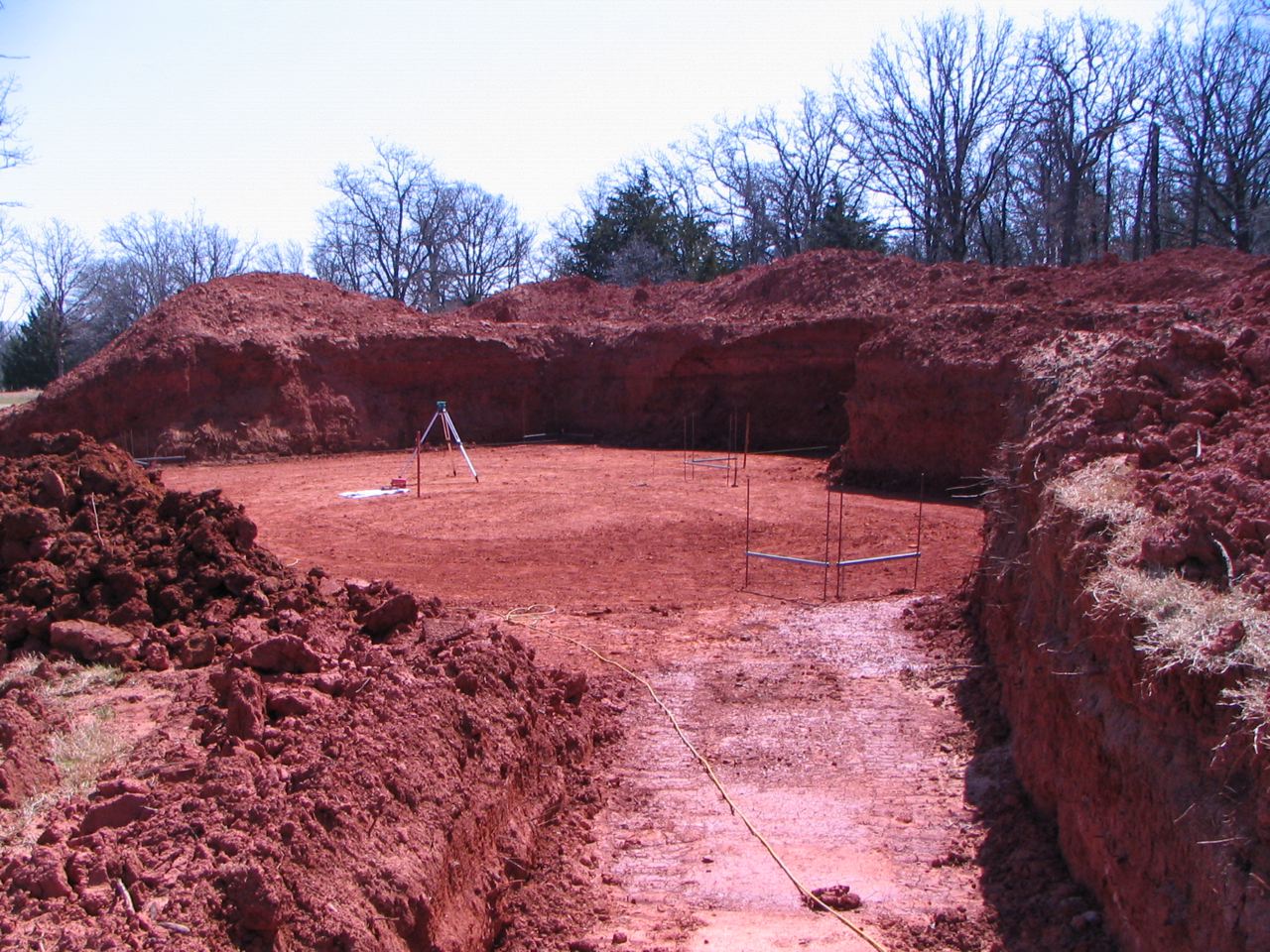

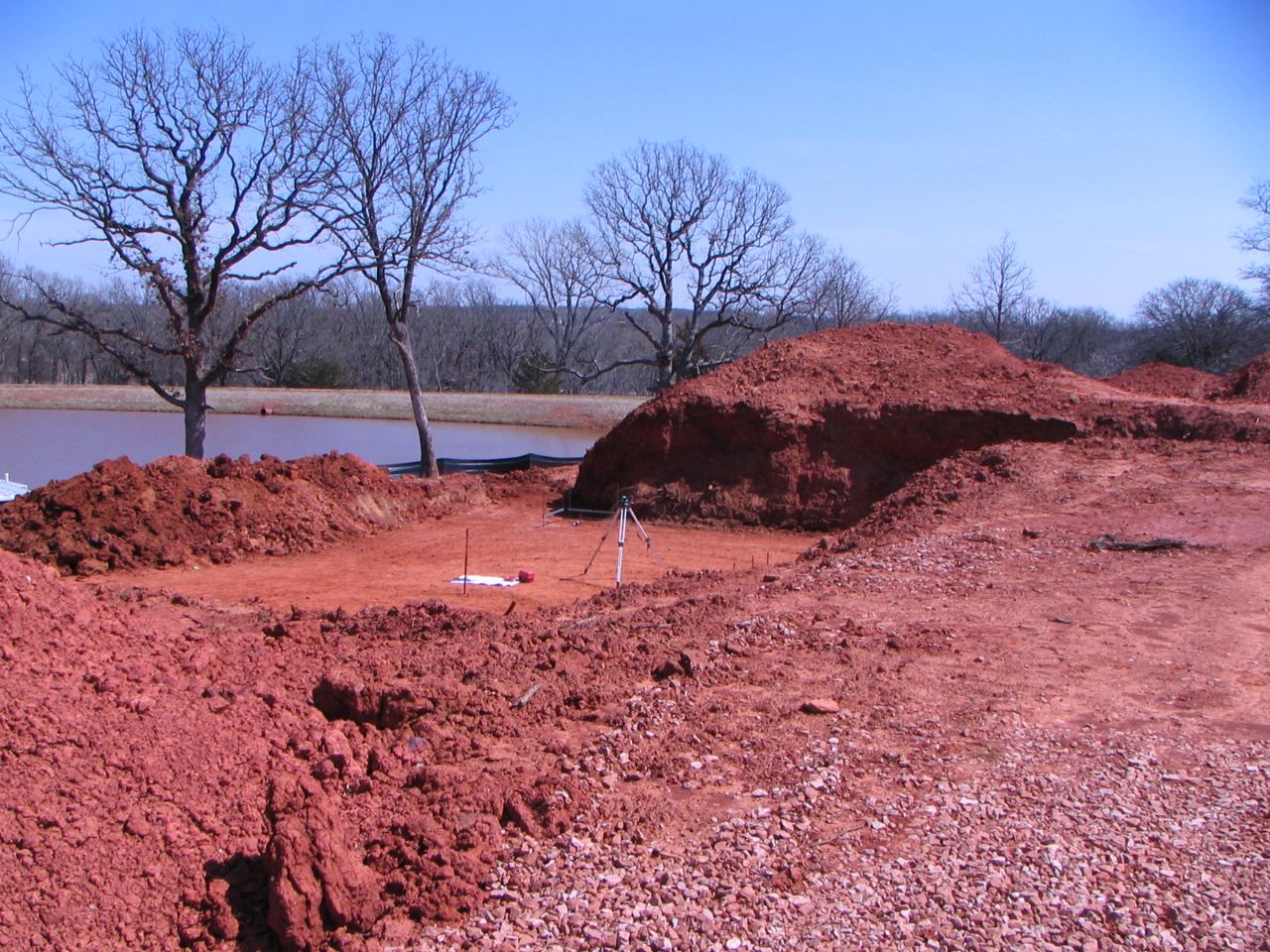

Excavated & layout for footings.

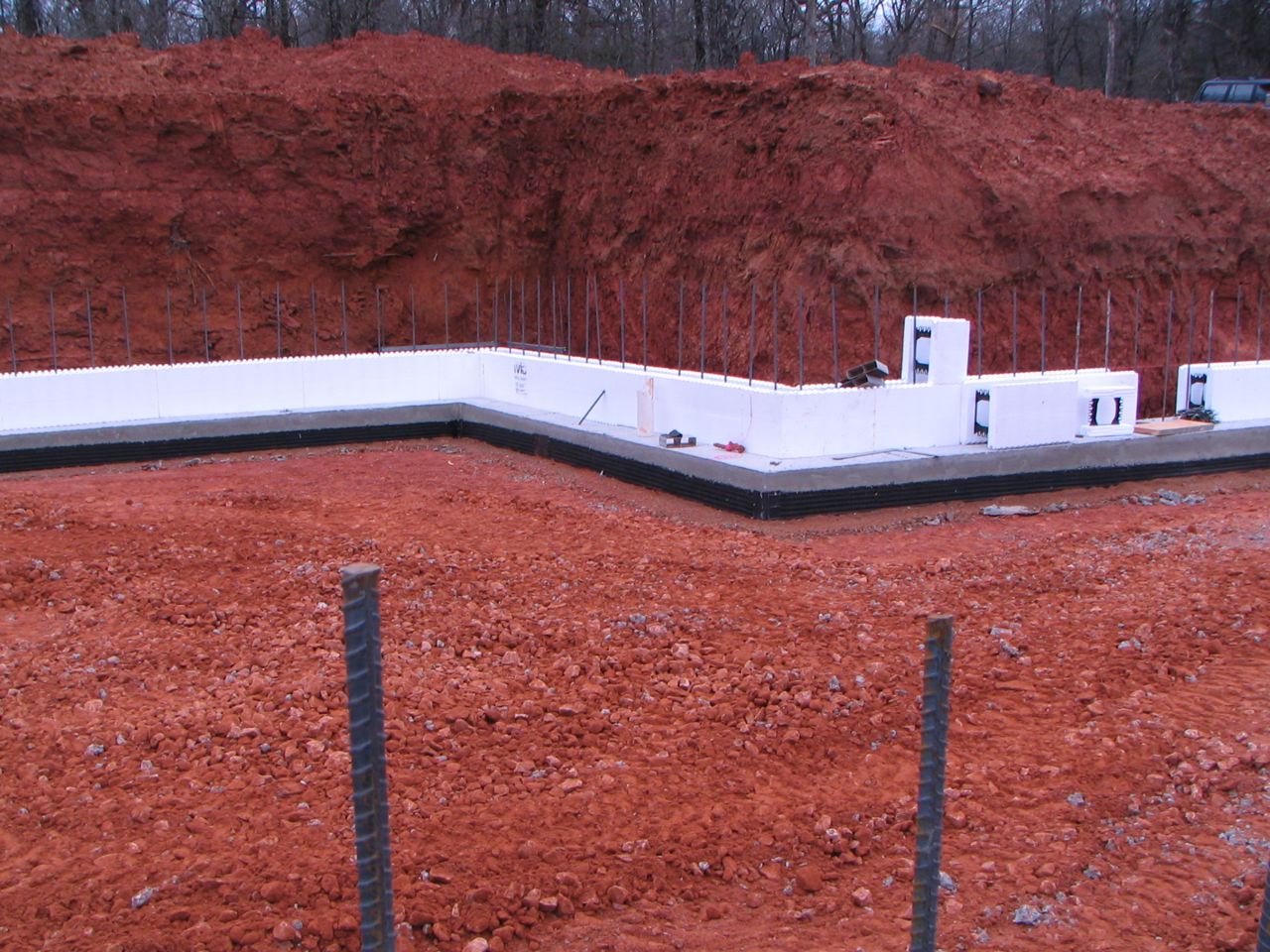

Interior footings show optional use of Great Lake Drain System poured into the footing wall.

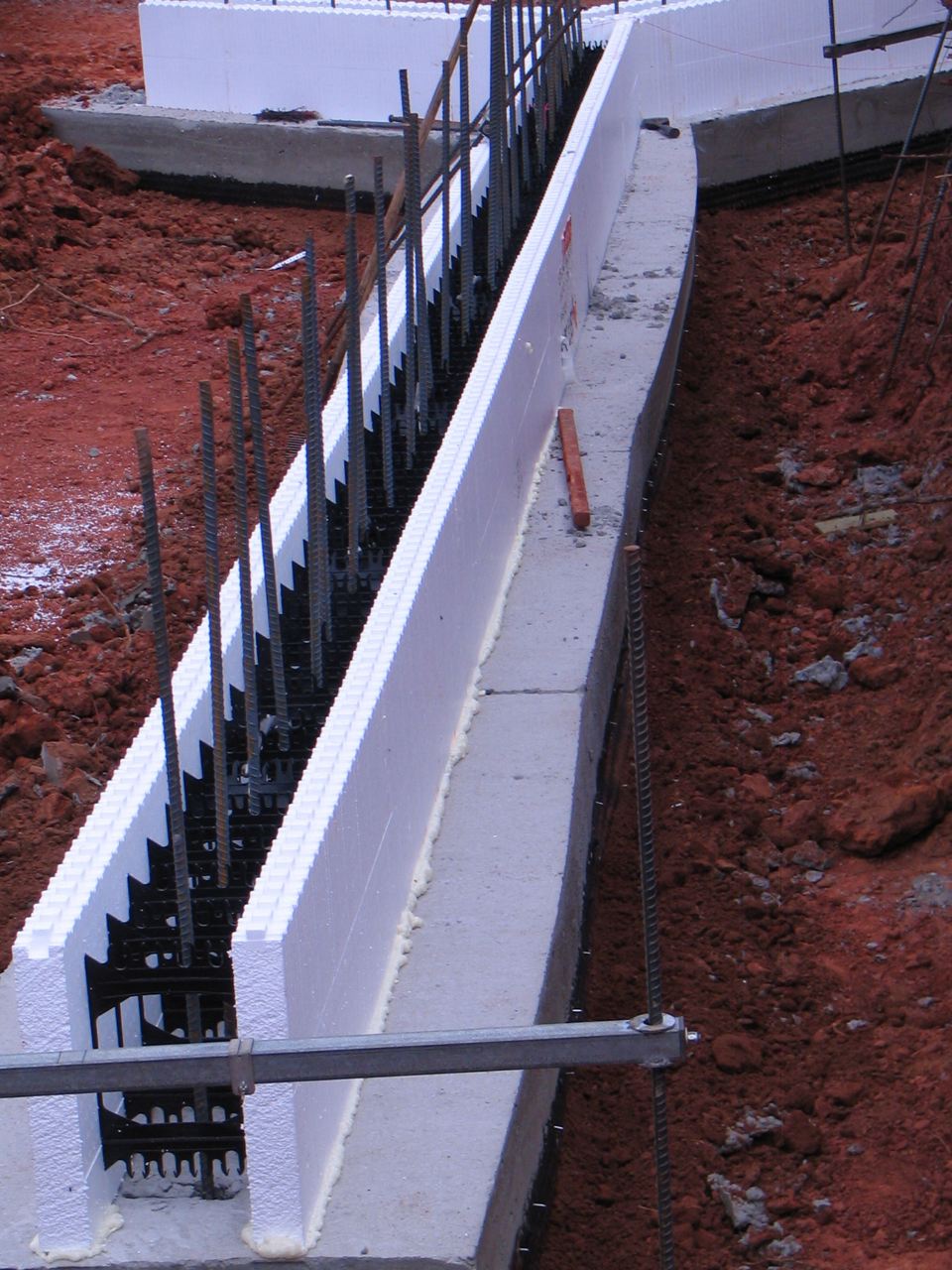

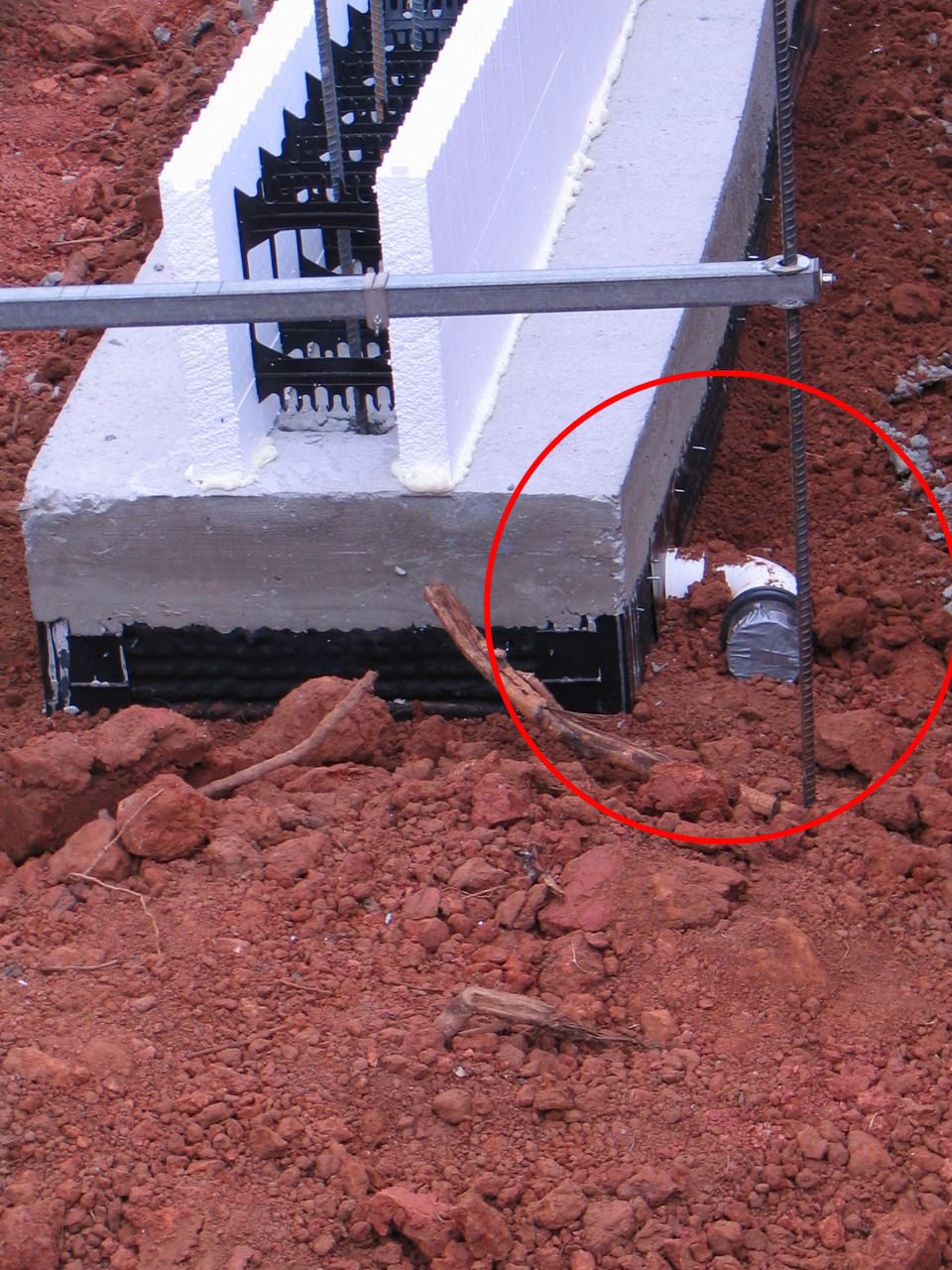

Great Lakes Drain System used with ICF.

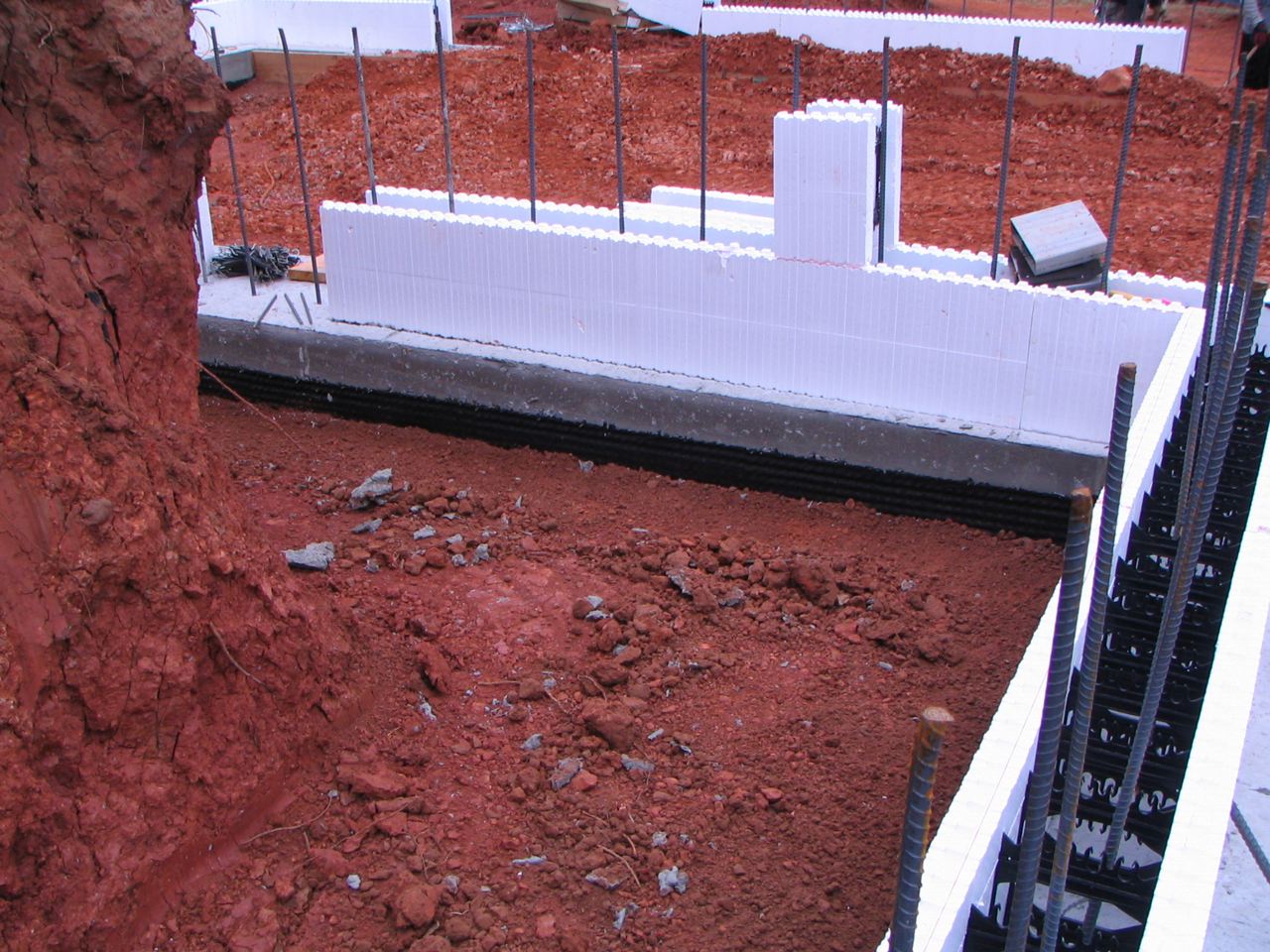

Exterior side of footing shows Great Lakes Drain System.

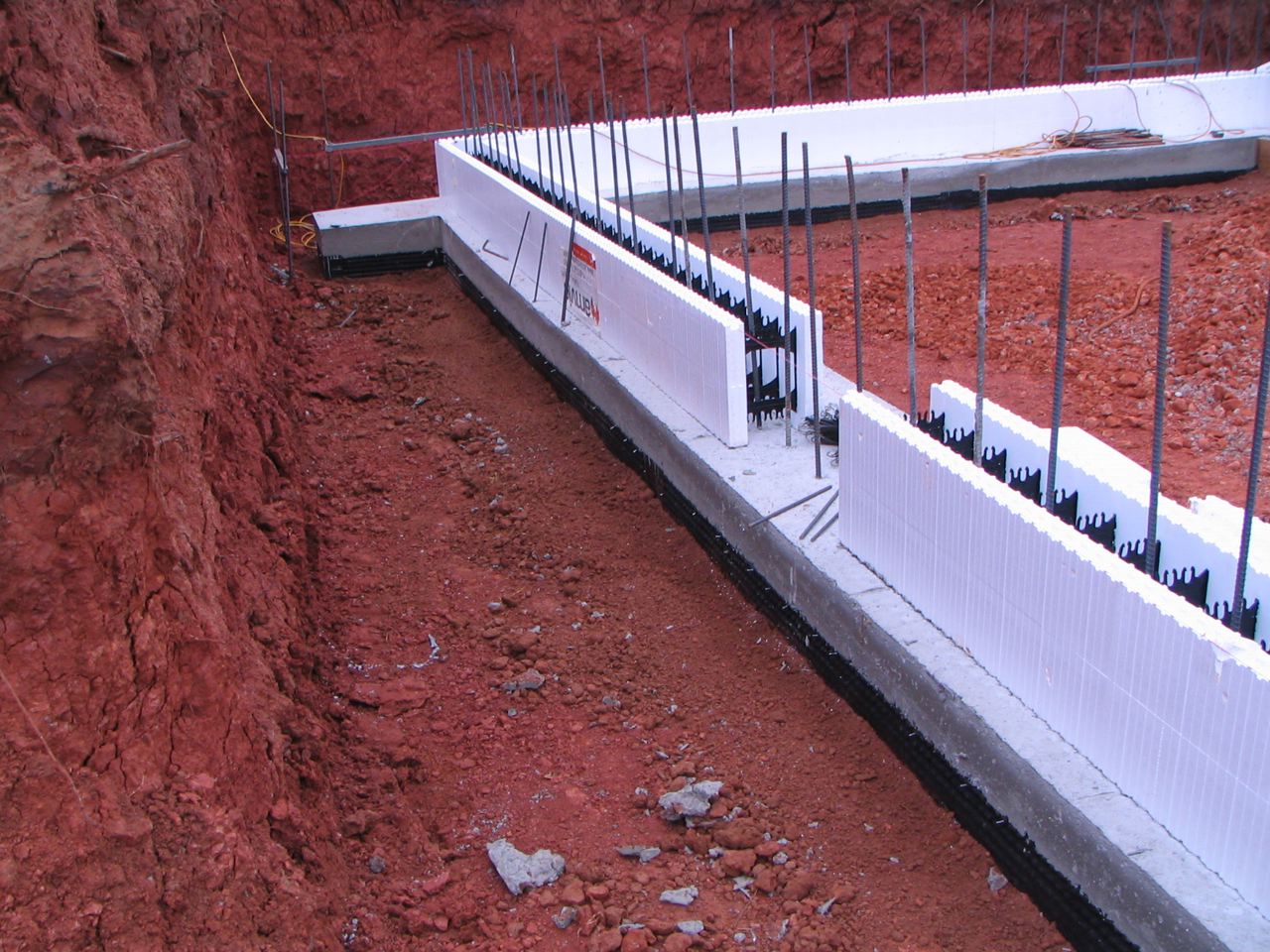

This photo shows footing for leadwall footing.

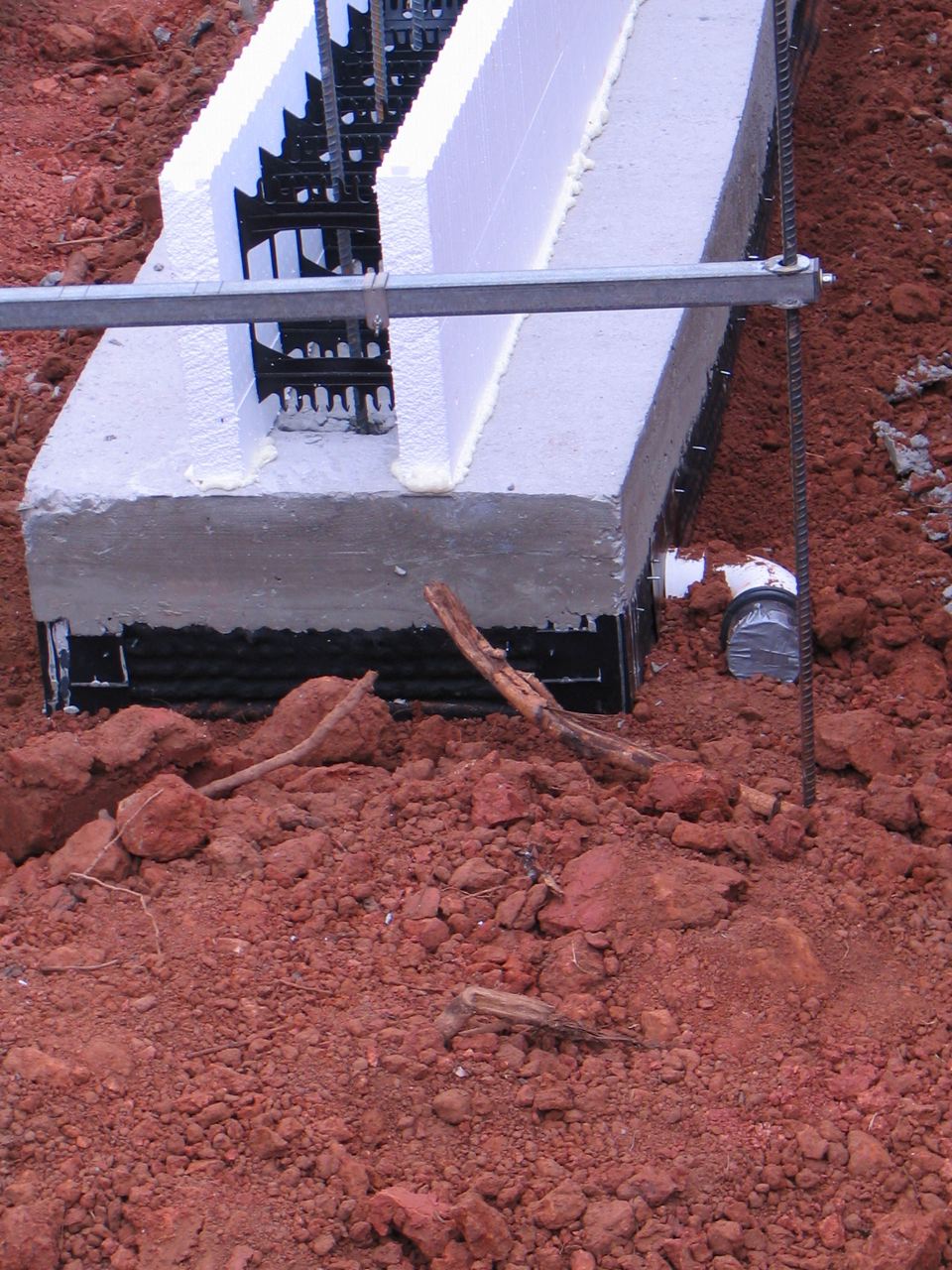

This photo show 90 degree walkout Great Lakes Drain System drain assembly for connection to standard 4" drain tile.

This photo shows footing for leadwall footing.

South East Michigan Installation Gallery
Outside perimeter of footing

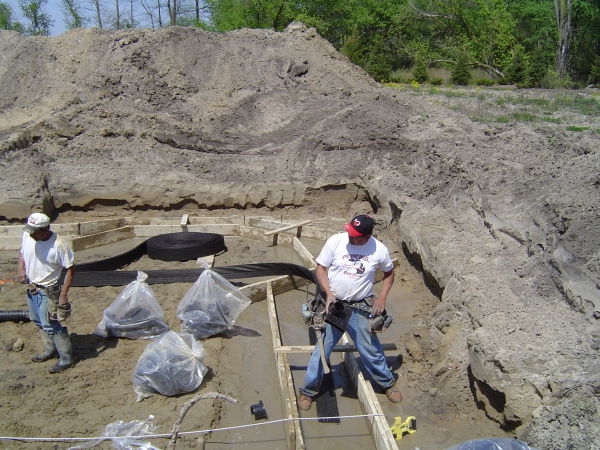

Layout and install footings.

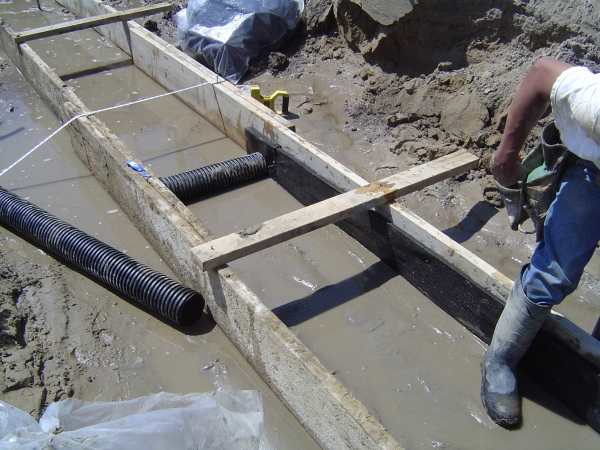

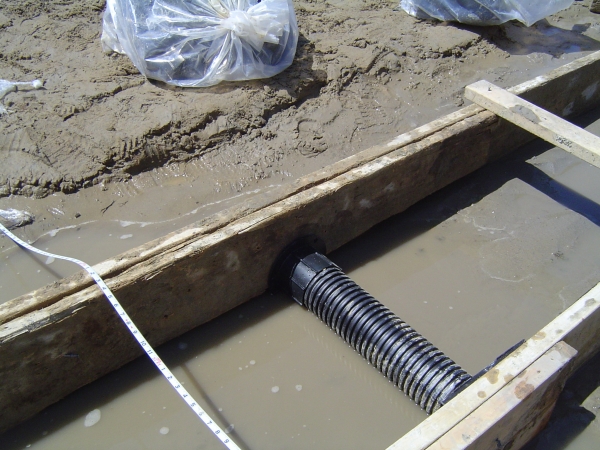

Place Bleeder with 4" drain tile.

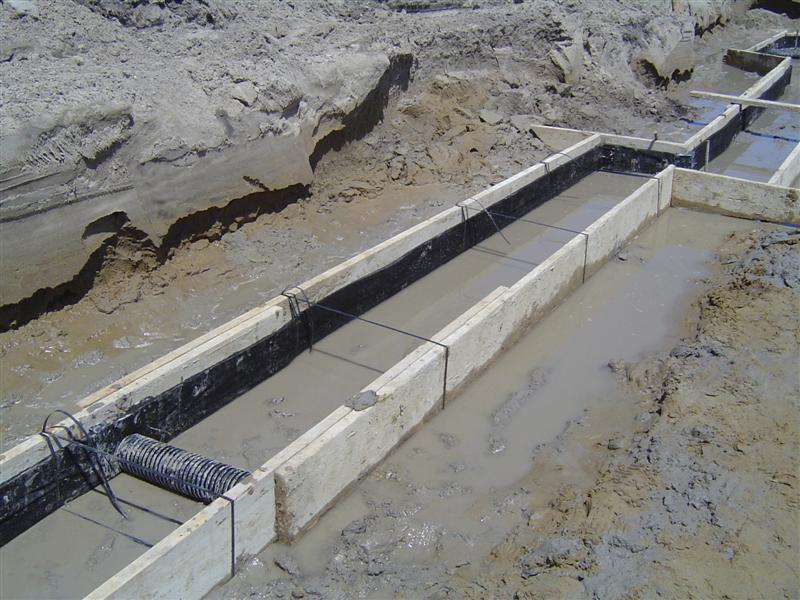

Shot of interior footing rail.

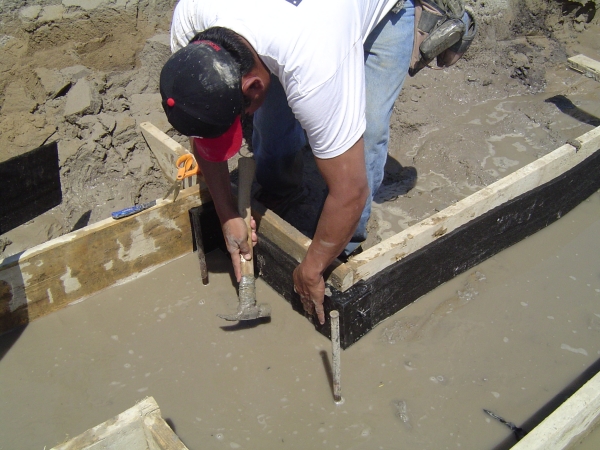

Run strip drain below top of footing and connect corners.

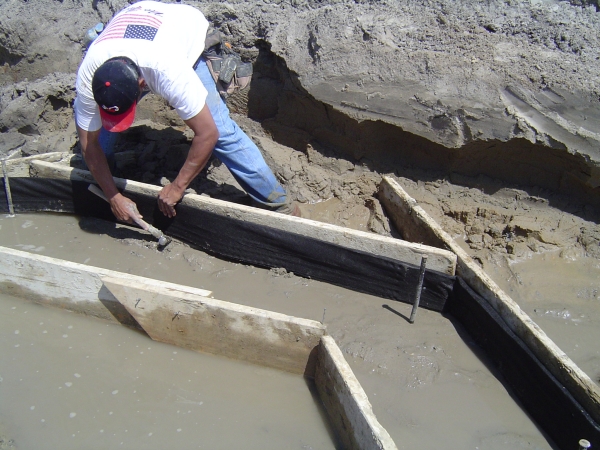

Angles/ Bay can follow exterior footing boards.

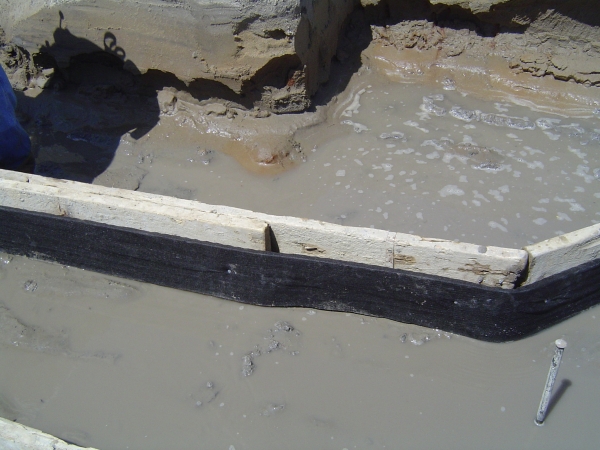

Sample picture of footing board off-set.

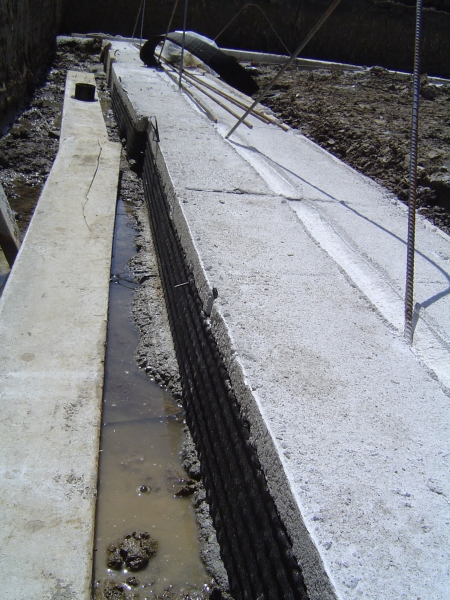

Picture shows stripped footing. Remember no pea stone is needed. Think of the savings!
